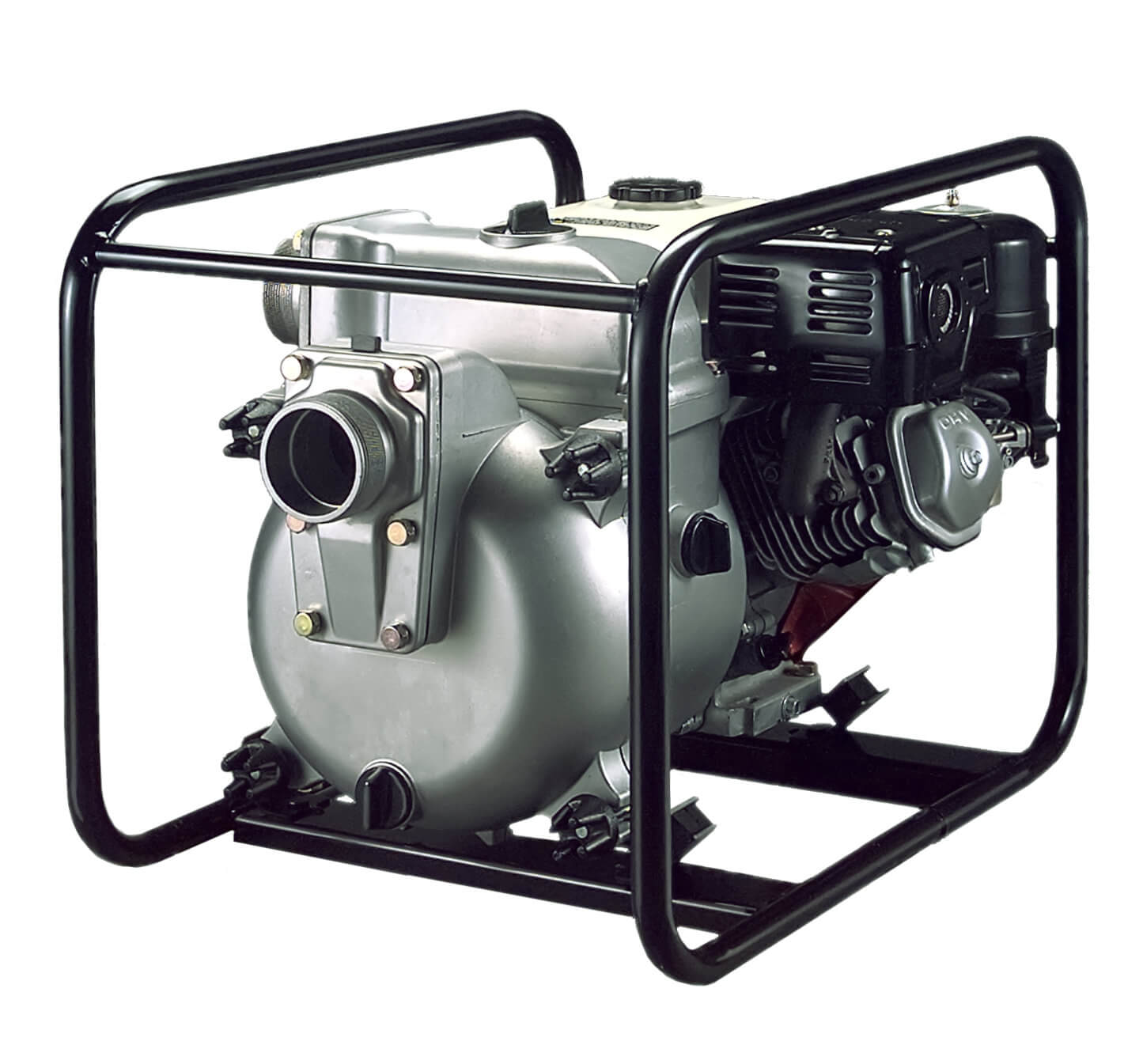

KTH-80X Trash water pump 3″ (80 mm)

Applications:•Suitable for sandy and muddy water with particles up to 27 mm – Washing livestock, barns or farm equipment – Irrigation with sprinkler systems – Pump water from well Performance Curve:Documentation:- Parts list for KTH-80X-BAB- Instruction for KTH-80X* This link leads to the parts list of the model KTH-80X-BAB. If the complete designation of your pump model differs from this, please ask us for the correct parts list via our contact form.Technical information:MODELKTH-80XConnection diameter80 mm (3”)Connection threadExternal pipe thread BSP or NPTTotal head27 m ENDelivery quantity1340 L/minMax. Suction height8 m (26 ft)Grain sizeMax. 27 mmMechanical SealSiC (silicon carbide) x SiCImpellerCast iron with high chromium contentSnailSpheroidal graphite cast iron (FCD450)Motor type4-stroke gasoline engine, air-cooledMotorHonda GX240Cubic Capacity270 ccmRated power4.6 kW (6.2 PS) / 3600 rpmMax. Power5.9 kW (7.9 PS) / 3600 rpmFuelGasoline, unleadedTank capacity5.3 L Cont. Operating timeApprox. 2 hoursStart methodCable starterScope of delivery1 strainer, 3 hose straps, 1 motor tool set, 1 multi-tool wrench (BSP type: 2 hose couplings)Weight, net59 kg Weight, gross62 kgDimensions LxWxH (cm)71.1 × 50.6 × 57Performance:A – Feed,B – head,C – Suction*Performance may vary depending on conditions
