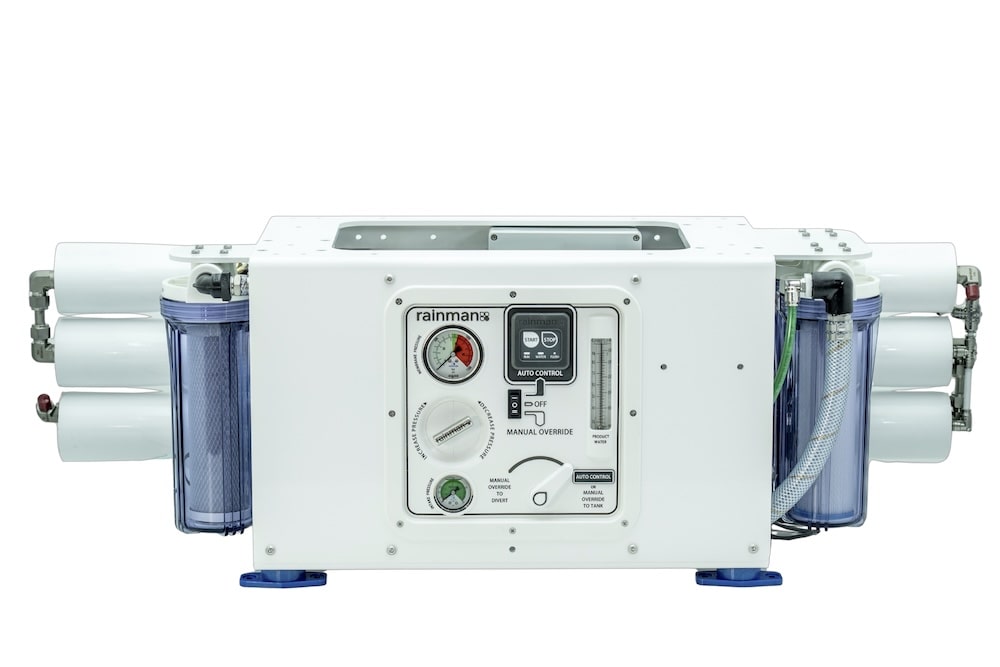

Rainman Framed Watermaker Systems

Description Rainman Framed Watermaker Systems: Rainman Watermaker Systems offer three main power sources for our watermakers. AC Electric, petrol (gasoline), and 12VDC electric. This table compares the specifications between the various options. Keep in mind there are different options for reverse osmosis (RO) units, so the fresh product water output depends on which one you choose. Framed Watermakers System Output Power Membranes Price Frame-AC-240L-Auto Torrent Most Popular 180-264lph 48-70gph 115VAC / 230VAC 2,450 / 2,800 watts 3 x 40” AU$ 23,712 Frame-AC-140L-Auto 100-154lph 26-41gph 115VAC or 230VAC 1,250 watts 2 x 40” AU$ 17,550 Frame-AC-100L-Auto 70-110lph 18-29gph 115VAC or 230VAC 1,250 watts 3 x 21” AU$ 19,064 Frame-48VDC-140L-Auto 100-154lph 26-41gph 48VDC 1,250 watts 2 x 40” AU$ 19,038 Frame-AC-240L-Man Torrent 180-264lph 48-70gph 115VAC / 230VAC 2,450 / 2,800 watts 3 x 40” AU$ 18,997 Frame-AC-140L-Man 100-154lph 26-41gph 115VAC or 230VAC 1,250 watts 2 x 40” AU$ 12,076 Frame-AC-100L-Man 70-110lph 18-29gph 115VAC or 230VAC 1,250 watts 3 x 21” AU$ 13,581 Frame-48VDC-140L-Man 100-154lph 26-41gph 48VDC 1,250 watts 2 x 40” AU$ 13,618 Framed systems include Manual or Auto Control Panel, Autoflush, and plumbing installation kit Simplest installation process Our framed watermaker systems are designed for those customers wanting an easier installation and have sufficient space to fit the entire system into a single location. It’s a strong option for larger vessels. Four different options are powered by AC electric or 48VDC and have outputs between 100 and 240 litres per hour (26 to 63 gallons per hour). Although the framed systems look different than other Rainman watermakers, internally, they are similar. They utilise the design simplicity found in all Rainman systems. A single motor with a through shaft to drive both the lift pump and high pressure pump. Most framed systems are sold in our fully automated configuration, but are also available with manual controls and autoflush. They are intended to either be plumbed into your boat or used for land based applications. Multiple Power and Output Options Frame AC 240L Torrent Torrent is Rainman’s highest output watermaker and is a great option for those customers on larger vessels that require substantial amounts of fresh water and have more power available. Incorporating three 2.5″ x 40″ seawater membranes, Torrent makes 180 – 240 litres per hour (48 – 63 gallons per hour). Torrent has a larger 2.2/2.5 HP motor than our other AC systems. It can be wired for either 230VAC or 115VAC. Running on 2450 watts steady state at 50Hz or 2800 watts at 60Hz, we recommend a good quality 8kW generator to start and run the system. Frame AC 140L This framed version of our most popular AC system has 2 x 40″ membranes and makes 100 to 140 litres per hour (26-37 gallons per hour). This high output watermaker will operate on a 2kVA generator or inverter. Many thousands of these systems have been deployed around the world in either portable, modular installed, or this framed configuration. This system has the same physical footprint as the Frame AC 240 Torrent above, but uses less power and makes less water. Frame AC 100L If you have limited width for your installation footprint, this system still provides reasonably high output using three 2.5″ x 21″ seawater membranes. It makes 75 to 100 litres per hour (20 – 27 gallons per hour) utilising a 2kVA generator or inverter. It utilises the same frame, pumps and motor as the Frame AC 140 above, but with shorter membranes. Frame 48VDC 140L For electrified boats operating on 48VDC, this option provides a high output option running off your batteries. Utilising 2 x 40″ RO membranes and a brushless DC motor, it draws 1,250 watts. This system has the same physical footprint as the Frame AC 240L Torrent and Frame AC 140L above. Framed Watermaker Options Any of these systems are available in either fully automated or manual control. Model Output Power Membranes AC Electric – Runs from generator or inverter AC-240L Most Popular 180-264lph 48-70gph 115VAC / 230VAC 2,450 / 2,800 watts 3 x 40” AC-140L 100-154lph 26-41gph 115VAC or 230VAC 1,250 watts 2 x 40” AC-100L 70-110lph 18-29gph 115VAC or 230VAC 1,250 watts 3 x 21” DC Electric – To run direct from battery 48VDC-140L 100-154lph 26-41gph 48VDC 1,250 watts 2 x 40” Easy Installation Rainman Framed watermakers have much of their plumbing and electrical connection internal to the unit. This means the installation process is simpler with fewer mounting points into your vessel. View the framed installation manual for more details. Flexible Configuration Most customers will enjoy the convenience of these systems being totally mounted in the frame. The membranes can be mounted on the rear or top of the frame. They can also be shifted side to side if required. If you have footprint issues and prefer the frame over a modular configuration, the membranes can be mounted remotely. The control panel and prefilters can also be removed and mounted remotely if desired. Note that mounting the components remotely will require you to get appropriate extension hoses as required. If using the system on land, a 12-24VDC supply is required to power the electronics and a house pump is required for autoflush operations. Two Control Options Any of the Framed configurations come standard with one of our integrated control panels. Most customers of the framed family of watermakers will benefit from the fully automated control panel, while some may still prefer the manual control option with autoflush functionality. Fully Automated The most popular option for our framed systems, the fully auto system incorporates significant convenience features while ensuring maximum reliability. Wired remote micropanel for full control at your nav station. Bluetooth connect phone app (iOS or Android) Timer function or set litres to be made Full pressure control Water diversion sending only good water to tank Manual backup in rare case of any sensor or electronics issue More info about the fully auto control panel » Manual Control The manual control option provides a convenient interface for your Rainman framed watermaker. It’s a highly presentable and functional component that will enhance your Rainman user experience. While being manually controlled, some electronics convenience features assist in system operations. Autoflush function triggers flush cycle after powering the watermaker off and every seven days thereafter Built in tri-colour LED salinity sensor indicates when water is good to route to your tank More info about the manual control panel » Open to view detailed comparison of features related to Manual and Auto control options Select Columns Manual Control Panel Auto Control Panel  Compatibility All Modular Systems Manual Framed Systems All Modular AC Systems 48VDC Modular Systems Auto Framed Systems  Summary Operation Manual control with electronics assistance – Salinity – Autoflush Fully automated Manual control backup Primary Interface White control panel Wired remote micropanel Phone app Remote digital switching Manual backup white control panel Wired Remote Micropanel On-Off Timer set 3 LED status indicators Phone App (Bluetooth Connected) Control Monitor Fault diagnostics Documentation Fresh Water Flush Autoflush after shutdown 7 day timer thereafter Autoflush on resumption after power loss, reset timer Autoflush after shutdown 7 day timer thereafter Autoflush on resumption after power loss, reset timer White Control Panel Mount Location Convenient location for regular access Flush mount or box mount Near watermaker as backup only Flush mount or box mount Upgrade Path Upgrade to Auto Panel None – You’re already in watermaker heaven Manual Control Panel Auto Control Panel  Function Power On Manual switch on control panel Wired remote micropanel Phone app Manual backup at watermaker Power Down Manual switch on control panel Wired remote micropanel Phone app Timer Preset water volume to make Tank float switch Digital switching Manual switch at control panel Pressure Control Manual via control panel Fully automated Manual backup at watermaker Divert Waste/Tank Manual 3-way divert valve in control panel After start up, system automatically routes water to tank Manual backup at watermaker Product Water Flow Meter Analogue in control panel Phone app monitor page Analogue at watermaker Brine Flow Meter Phone app monitor page Salinity Sensor Tri-colour LED (Red-Amber-Green) TDS reading Water temperature Tri-colour LED (Red-Amber-Green) Brackish Water Control Manually decrease pressure to max flow rate Automatic pressure control to correct flow rate Installation Control panel flush mount or as box Remote micropanel requires only cable connection Control panel flush mount or as box near watermaker Manual Control Panel Auto Control Panel Differences To Other AC Rainman Systems The two smaller AC framed systems (100L and 140L) are the same motor/pump configuration as our other AC portable and modular systems, but the larger one (240L Torrent) uses a larger pump/motor assembly to achieve greater flow rates. The 48VDC system utilises identical pump/motor assembly as the Modular or Portable units. The main difference from the modular systems are that the framed units keep much of the plumbing internal to the system. The main control panels are part of the unit, so no flush mounting or control panel box mount is required. Spares and Consumables Your new Rainman system will arrive with enough spares and consumables to keep you going for a while, so most customers do not need to order more with initial purchase. There are a variety of items you will need over time to keep your system running for many years. Rainman Watermaker spare parts and consumables » Specifications Comparison Table The following table compares the specifications of the different Rainman framed systems. This table also has the option to bring other types of Rainman systems into the comparison. Use “Select Columns” to choose systems for comparison. Select Columns Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Output Expectations 180 – 264 lph 48 – 70 gph 100 – 154 lph 26 – 41 gph 100 – 154 lph 26 – 41 gph  Configuration Enclosure Powdercoated aluminium frame Powdercoated aluminium frame Powdercoated aluminium frame Pressure Supply Unit (PSU) Internal to frame Internal to frame Internal to frame RO Membranes Three 2.5″ x 40″ seawater membranes Two 2.5″ x 40″ seawater membranes Two 2.5″ x 40″ seawater membranes Reverse Osmosis Unit (RO) Rear mount, top mount, or remote Rear mount, top mount, or remote Rear mount, top mount, or remote High Pressure Pump General Pump EWM triplex plunger pump General Pump / Rainman WMR triplex plunger pump General Pump / Rainman WMR triplex plunger pump Operating Pressure 55 bar (800 psi) in seawater 55 bar (800 psi) in seawater 55 bar (800 psi) in seawater Pressure Relief Valve General Pump 316SS/ceramic Integrated General Pump 316SS Integrated General Pump 316SS Prefilter 20 micron and 5 micron 20 micron and 5 micron 20 micron and 5 micron Lift Pump Integrated SPX Johnson F5B-8 bronze flexible impeller Integrated Rainman bronze flexible impeller Integrated Rainman bronze flexible impeller Vertical Water Lift 2 metres (6 ft) 2 metres (6 ft) 2 metres (6 ft) Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Power Power Source 115VAC/230VAC 50Hz/60Hz configurable 230VAC / 50Hz or 115VAC / 60Hz 48VDC Power Use 2,450 Watts @50Hz 2,800 Watts @60Hz 1,250 Watts 1,250 Watts Current Draw 11 Amps @230VAC 22 Amps @115VAC 6 Amps @230VAC 12 Amps @115VAC 26 Amps @48VDC Motor Type 2.2 / 2.5 HP NEMA 1.5HP TEFC induction Permanent magnet TEFC DC Plug Type Hard wired Hard wired Hard wired Power Cord Length None provided Recommend 4mm² 3 metres (10 ft) 230VAC – 10A cable (1.5mm²) 115VAC – 15A cable (2.08mm²) 1.4 metres (4.5 ft) including battery connectors AWG 8  Sound Level Subjective Sound Level Loud hum Loud hum Soft hum Measured Sound Level 6 metres in open lot 64dB 62dB 59dB Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Inclusions HP Hose 3/8″ – internal to frame (custom hose required if mounting RO remote) 1/4″ – internal to frame (custom hose required if mounting RO remote) 1/4″ – internal to frame (custom hose required if mounting RO remote) Product Water Hose LDPE food grade product water hose 18 metres (60 ft) total for divert and tank, cut to length (10mm OD) LDPE food grade product water hose 18 metres (60 ft) total for divert and tank, cut to length (8mm OD) LDPE food grade product water hose 18 metres (60 ft) total for divert and tank, cut to length (8mm OD) Brine Waste Hose 6 metres (20 ft), cut to length (1/2″ ID) 6 metres (20 ft), cut to length (10mm OD) 6 metres (20 ft), cut to length (10mm OD) Intake Hose 5 metres (16 ft), cut to length (3/4″ ID) 5 metres (16 ft), cut to length (1/2″ ID) 5 metres (16 ft), cut to length (1/2″ ID) Lift Pump Impeller 1 in pump 1 spare (replacement Johnson 09-1027B-1) 1 in pump 1 spare (replacement Rainman MI813 or Jabsco Profile D 22405-0001-P) 1 in pump 1 spare (replacement Rainman MI813 or Jabsco Profile D 22405-0001-P) 5 Micron Prefilter 1 in housing 4 spares 10″ x 2.5″ pleated poly 1 in housing 4 spares 10″ x 2.5″ pleated poly 1 in housing 4 spares 10″ x 2.5″ pleated poly 20 Micron Prefilter 1 in housing 4 spares 10″ x 2.5″ pleated poly 1 in housing 4 spares 10″ x 2.5″ pleated poly 1 in housing 4 spares 10″ x 2.5″ pleated poly Activated Carbon Filter 1 in housing 1 spare 10″ x 2.5″ 1 in housing 1 spare 10″ x 2.5″ 1 in housing 1 spare 10″ x 2.5″ Pickle Solution 1 kg (2.2 lb) sodium metabisulphite powder 1 kg (2.2 lb) sodium metabisulphite powder 1 kg (2.2 lb) sodium metabisulphite powder Valve / Gauge Control Integrated in control panel Integrated in control panel Integrated in control panel Low Pressure Gauge Integrated in control panel Integrated in control panel Integrated in control panel Salinity Sensor Tri-colour water quality indicator LED in control panel Tri-colour water quality indicator LED in control panel Tri-colour water quality indicator LED in control panel Product Water Flow Meter Acrylic plastic analogue flow meter – 350lph/90gph Acrylic plastic analogue flow meter – 160lph/42gph Acrylic plastic analogue flow meter – 160lph/42gph Plumbing Installation Kit Included Included Included Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Manual Control Panel N/A N/A N/A Switch N/A N/A N/A Pressure Control N/A N/A N/A High Pressure Gauge N/A N/A N/A Low Pressure Gauge N/A N/A N/A Product Flow Meter N/A N/A N/A Salinity Sensor N/A N/A N/A Diverter Valve N/A N/A N/A Autoflush N/A N/A N/A Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Full Auto Control Panel Included Included Included Wired Remote Micropanel 60mm x 60mm (2 ⅜”) 15m (50 ft) cable 60mm x 60mm (2 ⅜”) 15m (50 ft) cable 60mm x 60mm (2 ⅜”) 15m (50 ft) cable Phone App Included Bluetooth 5 Included Bluetooth 5 Included Bluetooth 5 Switch Included / integrated AUTO-OFF-OVERRIDE Included / integrated AUTO-OFF-OVERRIDE Included / integrated AUTO-OFF-OVERRIDE Pressure Control Included / integrated BLDC gimbal motor Manual backup Included / integrated BLDC gimbal motor Manual backup Included / integrated BLDC gimbal motor Manual backup High Pressure Gauge Included / integrated Electronic sensor Analogue backup Included / integrated Electronic sensor Analogue backup Included / integrated Electronic sensor Analogue backup Low Pressure Gauge Included / integrated Electronic sensor Analogue backup Included / integrated Electronic sensor Analogue backup Included / integrated Electronic sensor Analogue backup Product Water Flow Meter Included / integrated Electronic turbine meter Analogue backup Included / integrated Electronic turbine meter Analogue backup Included / integrated Electronic turbine meter Analogue backup Brine Flow Meter Included / integrated Electronic turbine meter Included / integrated Electronic turbine meter Included / integrated Electronic turbine meter Salinity Sensor Included / integrated Tri-colour LED (Micropanel) TDS (Phone app) Included / integrated Tri-colour LED (Micropanel) TDS (Phone app) Included / integrated Tri-colour LED (Micropanel) TDS (Phone app) Temperature Sensor Included / integrated Temp reading (Phone app) Included / integrated Temp reading (Phone app) Included / integrated Temp reading (Phone app) Diverter Valve Included / integrated Automatic solenoid Manual backup Included / integrated Automatic solenoid Manual backup Included / integrated Automatic solenoid Manual backup Autoflush Included / integrated Boat pump from tank Included / integrated Boat pump from tank Included / integrated Boat pump from tank Troubleshooting LED codes (Micropanel) Descriptive text (Phone app) LED codes (Micropanel) Descriptive text (Phone app) LED codes (Micropanel) Descriptive text (Phone app) Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto  Dimensions System Weight 92kg (203lb) 64kg (141lb) 63kg (139lb) RO Mounted on Rear of Frame 1,170 x 380 x 480mm (46.0 x 15.0 x 18.9″) 1,170 x 380 x 487mm (46.0 x 15.0 x 19.2″) 1,170 x 380 x 487mm (46.0 x 15.0 x 19.2″) RO Mounted on Top of Frame 1,170 x 485 x 375mm (46.0 x 19.1 x 14.8″) 1,170 x 492 x 375mm (46.0 x 19.4 x 14.8″) 1,170 x 492 x 375mm (46.0 x 19.4 x 14.8″) Frame Separated from RO Unit 815 x 380 x 375mm (32.1 x 15.0 x 14.8″) 815 x 380 x 375mm (32.1 x 15.0 x 14.8″) 815 x 380 x 375mm (32.1 x 15.0 x 14.8″) RO Unit 1,170 x 325 x 106mm (46.0 x 12.8 x 4.2″) 1,170 x 220 x 120mm (46.0 x 8.7 x 4.7″) 1,170 x 220 x 120mm (46.0 x 8.7 x 4.7″) Pressure Supply Unit Incorporated in frame Incorporated in frame Incorporated in frame Manual Control Panel N/A N/A N/A Auto Control Panel Incorporated in frame Incorporated in frame Incorporated in frame Auto Remote Micropanel 60 x 60 x 10mm (2.4 x 2.4 x 0.4″) 60 x 60 x 10mm (2.4 x 2.4 x 0.4″) 60 x 60 x 10mm (2.4 x 2.4 x 0.4″) Frame AC 240L Torrent Auto Frame AC 140L Auto Frame 48VDC 140L Auto Spares and Consumables Your new Rainman system will arrive with enough spares and consumables to keep you going for a while, so most customers do not need to order more with initial purchase. There are a variety of items you will need over time to keep your system running for many years. Consumables and Spares Price HM Digital COM80 hydrotester AU$ 057 Prefilter cartridge (5 micron) AU$ 021 Prefilter cartridge 24 pack (5 micron) AU$ 454 Prefilter cartridge (20 micron) AU$ 021 Prefilter cartridge 24 pack (20 micron) AU$ 454 Active carbon filter for Autoflush AU$ 021 Impeller replacement (Portable, Modular, non-Torrent Frame) AU$ 057 Impeller replacement (Frame-AC-240L-Torrent only) AU$ 103 Pickle solution mix – 1kg (2.2lb) AU$ 058 5 metre high pressure hose w/ end cap AU$ 297 5 metre high pressure hose w/out end cap AU$ 162 2.5” x 40” Oltremare RO membrane AU$ 621 2.5” x 21” Filmtec RO membrane AU$ 711 Plumbing installation kit (to install Portable systems) AU$ 599   Control Panel Options Price– Control panel exterior hatch AU$ 256 230VAC Relay Box (RM-AC-230V-RELAY-COMPATABILITY-BOX) AU$ 099 115VAC Relay Box (RM-AC-115V-RELAY-COMPATABILITY-BOX) AU$ 099 Valve/gauge assembly with high pressure hose (RM-NAKED-GAUGE-HOSE-ASSEMBLY) AU$ 684 Valve/gauge assembly (RM-NAKED-GAUGE-ASSEMBLY) AU$ 398 Autoflush timer (RM-AF-TIMER-V1.2-ASSEMBLY) AU$ 328 Autoflush motor valve (RM-AF-MOTOR-VALVE-V2) AU$ 121 Related
